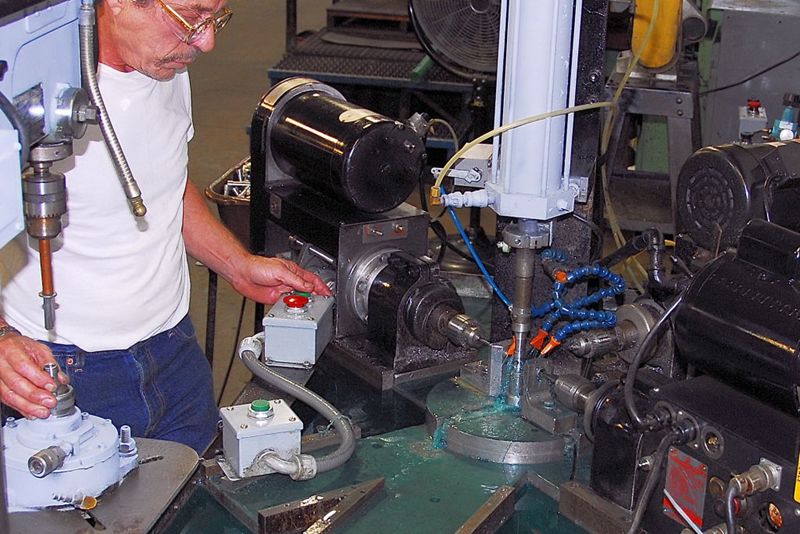

Cellular Manufacturing Drilling, Tapping & Reaming
Castings
AMT qms

PDFLong Term Quality Plan

Equipped with sophisticated, multi-axis CNC lathes & Kira CNC machine centers, we can turn, mill, bore, tap, and drill all types of customer supplied casting and forgings. Machining gray or ductile iron casting to lightweight aluminum forgings for industrial applications to high strength iron and steel forgings, chassis parts, as well as crankshafts, is not a problem for us.

Typically, there are no limits to the size/weight/shape of parts machined by us. From basic to complex operations, we precisely meet our customer’s prototype, short run, and high volume production quantity requirements. CNC machining for third party components, such as customer-supplied castings and forgings, meet/exceed client’s design requirements.

Designing, engineering, and manufacturing tools in-house reduce the set up time and helps in quick turn around. We also offer broaching, grinding, stamping, and other surface finishing services for machined castings as well as forgings, according to customer requirements.

Use the “Request Information” selection to contact us. Attach your design documentation along with your contact information for our Engineering Department to review and provide you with a quote.

  • Machine Specifications:
    ISO Certifications:

    ISO 9001:2015 Certification
    See the right hand navigator for “Downloads”.

    Tolerances

    0.0004 inch

    Production Runs

    We can produce prototype parts of one, to high volume production quantities.

    Equipment Used

    (14) Okuma CNC Turning Center: with bar feeders.
    Bar capacity range from 3/8″ through 3 1/8″ Diameter with bar feeder.
    Slug capacity range from 1/4″ through 14″ Diameter.
    Maximum Chuck Diameter is 14″.
    Maximum Finshed part length 40″ Long.

    • (1) #LB12
    • (4) #LB15
    • (1) #LB15 II Long Bed
    • (1) #LC20 4 Axis
    • (1) #L370-BB Captain
    • (1) #LU-15BB/MW
    • (1) #Lb25 Long Bed Lathe
    • (1) Okuma GENDS Wsub spindle
    • (1) Okuma LB3000EX II/800 w/sub spindle & Live tooling
    • (1) Okuma M560-V 15K VMC
    • (1) Hardinge Conquest V1000 VMC


    (3) Kira 12 tool CNC tap/mill machine centers, Model VTC-30
    (1) Miles horizontal hydraulic broach
    (11) Milwaukee production milling machines
    (3) Dumore multi station drilling machines
    (3) Hardinge super precision bench lathes
    (1) Clausing lathe
    (20) Drill presses
    Various other equipment including marking presses, arbor presses, belt sanders, polishing and buffing machines

  • Materials & Supporting Documentation:
    Acceptable Drawing File Formats

    PDF, JPG, JPEG, BMP, TIF, TIFF, DXF, DWG, GIF, PCX, WPG.

    Materials Worked:

    Metals and Alloys:
    Free Machining and Medium Carbon Steels
    Alloy Steel
    Tubing
    Stainless
    Brass
    Aluminum
    Copper
    Bronze
    Iron (grey and ductile)

    Features

    Machining to add critical dimensions to customer supplied products

  • General Specifications:

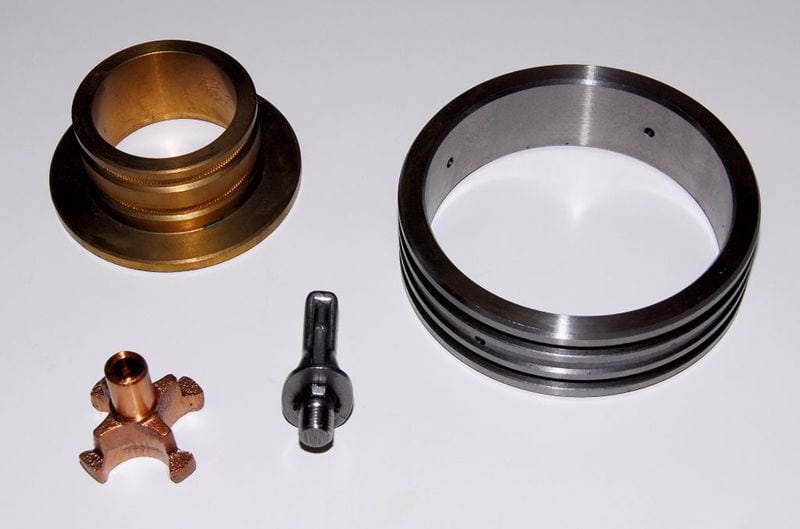

    Parts Typically Produced:

    Release Tube Flanges
    Bearing Locking Rings
    Seal Rings
    Prongs

    Industries Served:

    Agricultural
    Hydraulic/Fluid power
    Electronics
    Heavy Equipment
    Automotive
    Industrial
    Heavy Duty Trucks
    Medical Instruments
    Marine Industry
    Military
    Brake Parts
    Oil & gas industry
    Plumbing
    Fasteners
    Injection Molding
    Machinery and Equipment
    Fasteners
    Construction
    Mass Transit
    Lawn and Garden
    Recreation Equipment
    Heating/Refrigeration
    Food/Beverage
    Mining Equipment
    Water Treatment
