Automatic Screw Machine

Acme Gridley Automatic Screw Machine Department

PDF Long Term Quality Plan

Since 1923, we have been producing precision screw machine and Swiss turned products to demanding customer specifications. Although the process dates back to 1873, the ease of set-up by skilled machinists, using special in-house tooling, and the ability to consistently hold very demanding tolerances, make our screw machines ideal for producing certain parts more economically than using conventional Swiss or CNC equipment. Screw machines and their capabilities, in conjunction with our CNC equipment; allow us to integrate both conventional as well as CNC technologies to develop a cost effective, efficient process for the production of your parts.

Whether your requirements are for a single piece for a prototype/test component, or high volume production quantities, we are equipped with the most efficient equipment to provide your machine products. Our Brown & Sharpe single spindle and Acme Gridley multi spindle machines can accommodate round, hex or square stock ranging from 0.063” to 6” in diameter. Our machines are equipped with machining attachments to perform secondary operations, offering you substantial cost reduction as well.

Jessen uses Lean cellular manufacturing techniques, exceptional engineering, in-house tool making to engineer the tools to produce your products, and efficient production methods – a combination that provides Just-in-Time delivery for customers in a variety of industries. This blend of people, technology and experience make up the company that is Jessen Mfg. A manufacturer that meets its customer’s needs and guarantees the integrity of its final product.

Use the “Request Information” selection to contact us. Attach your design documentation along with your contact information for our Engineering Department to review and provide you with a quote.

Machine Specifications:
ISO Certifications:

ISO 9001:2015 Certification
See the right hand navigator for “Downloads”.

Tolerances the machines can produce repeatedly:

0.0005 inch

Quantity of Parts Produced:

We can produce prototype parts of one, to high volume production quantities.
Equipment List
(26) National Acme-Gridley 4 or 6 spindle auto-matic screw machines, Models RA or RB.
Bar capacity range from 1/4″ thru 6″.

( 8 ) 1-1/4″ – 6 Spindle

( 8 ) 2″ – 6 Spindle

( 5 ) 2-5/8″- 6 Spindle

( 1 ) 3-1/2”- 4 Spindle

( 4 ) 3-1/2 – 6 Spindle

( 1 ) 6″ – 6 Spindle

(21) Brown & Sharpe high speed ultramatic single spindle automatic screw machines. Many with Lipe magazine bar feeds. Bar capacity range from 1/16″ thru 2-3/8″.

( 8 ) # 00

( 1) # 0

( 11 ) # 2

( 1 ) # 3

(6) Brown & Sharpe high speed single spindle automatic screw machines, used for secondary operations.

( 3 ) # 00

( 3 ) # 2
Materials & Supporting Documentation:

Acceptable Drawing File Formats

PDF, JPG, JPEG, BMP, TIF, TIFF, DXF, DWG, GIF, PCX, WPG.

Materials Worked:

Metals and Alloys:
but NOT limited to….

Free Machining and Medium Carbon Steels
Alloy Steel
Tubing
Stainless
Brass
Aluminum
Copper
Bronze
Iron (grey and ductile)
Tool Steels
Drill Rod
Monel
Inconel
Hastaloy
Titanium
Kovar
Pinion Rod
Black Pipe

Plastics:
but NOT limited to….

-PVC
-nylon
-delrin
-ultem
-peek
-acetal
-phenolic
-teflon
-nylatron
-noryl
-polyethylen uhmx
General Specifications:

Parts Typically Produced:

Automatic Screw Machine Parts:

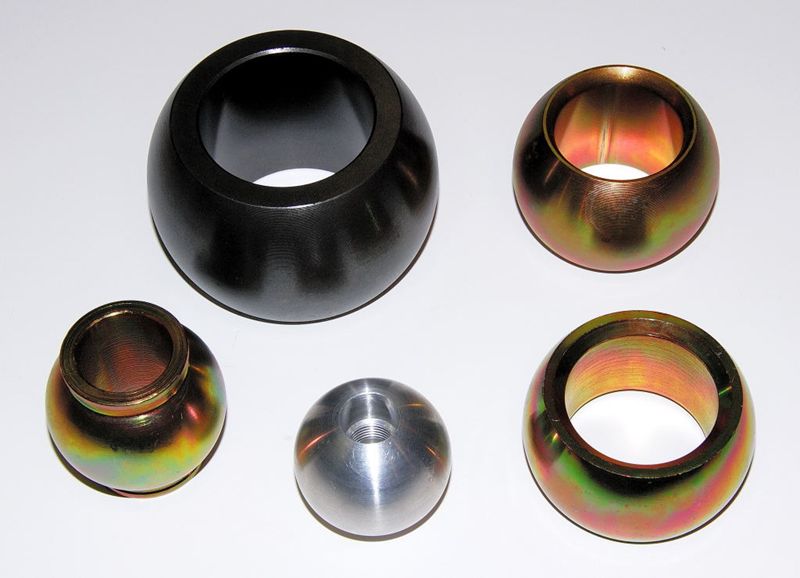

Actuator Shafts, Adapters, Adapter Bodies, Adjusting Bolts, Air Regulators, Aluminum Knobs, Anchors, Balls, Ball Swivels, Barbed Coupling, Barbed Fittings, Barrels, Bolts, Bushings, Cable Glands, Cable Retainers, Caps, Cap Nuts, Cap Screws, Cases, Check Needles, Check Valves, Check Valve Bodies, Clevis’, Closed-End Inserts, Collars, Connectors, Connector Housings, Contacts, Cord Grips, Covers, Crimp Sleeves, Couplers, Double-Ended Studs, Dowels, End Caps,Extenders, Ferrules, Fittings, Flanges, Flanged Couplings, Gear Blanks, Glands, Gland Nuts, Handles, Head Poppet Stems, Hose Barbs, Hose Connectors, Hose Couplings, Hose End Shells, Housings, Hydraulic End Shells, Knobs, Knurled Inserts, Levers, Molded Inserts, Nipples, Notched Inserts, Nozzle Tips, Open-End Inserts, Pinion Rods, Pins, Pipe Couplings, Pistons, Piston Seats, Piston Stems,Plugs, Plungers, Pole Faces, Poppets, Ports, Pulleys, Push Buttons, Push-on Couplings, Quill, Reducers, Reducing Bushings, Release Screws, Retainers, Rivets, Rods, Rollers, Scrapers, Screw Caps, Seats, Self Tapping Inserts, Shafts, Shaft Couplings, Sheaves, Shoulder Bolts, Shunts, Sleeves, Spherical Ball Joints, Spacers, Split Collars, Split Rings, Spools, Spool Stops, Spring Guides, Spring Retainers, Standoffs, Stems, Swivel, Swivel Bodies, Tapered Insert, Threaded Insert, Threaded Rods, Threaded Studs, Tubes, Tube Couplings, Valves, Valve Bodies, Valve Caps, Valve Housings, Valve Stems, etc.

Automatic Screw Machine / Swiss Machined Parts:
Armatures, Bushings, Caps, Contacts, End Caps, Guides, Hose Spuds, Inserts, Nozzle Checks, Nuts, Orifices, Pins, Plugs, Plungers, Release Screws, Rods, Screws, Standoffs, Spindles, Terminals, etc.

Industries Served:

Agricultural
Hydraulic/Fluid power
Electronics
Heavy Equipment
Automotive
Industrial
Heavy Duty Trucks
Medical Instruments
Marine Industry
Military
Brake Parts
Oil & gas industry
Plumbing
Fasteners
Injection Molding
Machinery and Equipment
Fasteners
Construction
Mass Transit
Lawn and Garden
Recreation Equipment
Heating/Refrigeration
Food/Beverage
Mining Equipment
Water Treatment
